HRSG Steam Vent Silencer - Safety Design & Inspection

When it comes to industrial processes, everything is about safety and efficiency. Steam vent silencers are designed to safely and quietly discharge high-pressure steam into the atmosphere, with the aim of ensuring that industrial plants operate in conformance with noise regulations and function properly. But like all other machinery, steam vent silencers also require proper design and periodic inspections to avoid failure modes that can result in safety hazards or operational downtimes.

Here, we’ll analyze the structural aspects of steam vent silencers, focusing on design considerations, safety inspections, and common failures. Whether you’re an engineer, plant manager, or simply someone interested in industrial equipment, this guide will provide valuable insights into maintaining the structural integrity of these critical components.

What is a Steam Vent Silencer?

Before diving into the structural details, let’s start with the basics. A steam vent silencer is installed downstream of a relief valve to dampen the sound produced by the discharge of high-pressure steam. These silencers are typically mounted at elevated positions in plants, often called ‘sky vents,’ and essential for noise control observation. The main components of a steam vent silencer are:

• Diffuser assembly with inlet pipe: This is for steam distribution and to dampen the noise.
• Silencer shell: The outer casing, which may or may not contain a liner.
• Silencer inserts: These are internal elements that absorb sound and reduce the noise level.

The Importance of Structural Inspections

Regular inspection of steam vent silencers is important for safe and efficient operation. Some components deteriorate over time due to factors like thermal fatigue, corrosion, and mechanical stress. Here’s a breakdown of the inspection procedure and what to look for:

1. Support Brackets and Welds: Check the support brackets for any trace of corrosion or degradation. The welds must be free from cracks or other forms of damage, as this can affect the structural integrity of the silencer.
2. Outer Shell: Corrosion, cracks, and thinning on the outer shell may lead to leakage or complete failure if left unchecked.
3. Inlet Pipe: Inspect the bolts of the inlet pipe for loosening or missing bolts, and check the welds for failure. The inlet pipe could also be the victim of corrosion, particularly in areas subjected to high moisture.
4. Internal Components: Tools like GoPro cameras will inspect internal baffles and the diffuser basket. It may contain some perforated sheets, frames, and supports, which are probably corroded or cracked. The diffuser basket is liable to wear due to high-velocity steam flow and high pressure.
5. Drainage System: The drainage pipe should be free and functional. Water accumulation can cause excessive corrosion, especially at the bottom of the silencer.

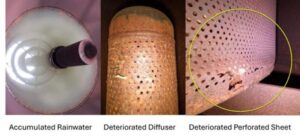

Common Structural Failures and Safety Concerns

Knowledge of common failure points in steam vent silencers will enable you to take steps to prevent such failures. The following are some of the most frequent failures:

• Deterioration of the perforated liner: The silencer’s perforated liner deteriorates due to use over a period, reducing acoustic insulation. Under unfavorable conditions, large portions of the perforated liner can separate and eject from the silencer, posing safety hazards.
• Cracks in the center body support: Cracks in the center body support can cause the structure to collapse, potentially blocking steam flow and even ejecting large silencer parts.
• Diffuser basket failure: Diffusers operate under extremely high-velocity and high-pressure steam conditions. The high pressure and thermal cycles will fatigue the perforated plates and cause cracks in the welds and frames. These issues can pose significant safety risks if parts break away and eject from the silencer.
• Corrosion by water accumulation: When drainage fails, the silencer accumulates water from its bottom. As a result, extreme corrosion may lead to great material losses. It commonly occurs with silencers that are subjected to rain and condensation.

Root Causes of Structural Failures

To effectively avoid failures, their root causes should be known:

• Design and fabrication issues: The contribution of poor material selection, inadequate welding procedures, and suboptimal aerodynamic design to structural failures cannot be overestimated. For example, using materials that are too thin or not corrosion-resistant can lead to premature degradation.
• Thermal fatigue: Steam vent silencers are subjected to repeated thermal cycles that, over time, may weaken the materials. This is most true in very high-temperature environments.
• Inadequate inspection: Without routine inspections, small issues may go unnoticed and escalate into major failures. Regular checking finds this vital to spot problems and act well in time.

Design Considerations for Structural Integrity

Designing steam vent silencers considers several aspects relating to structural integrity for their lifetime operation:

• Material selection: The materials used should be corrosion-resistant and capable of withstanding high temperatures. For this reason, stainless steel is usually a decent choice for components like the diffuser basket and perforated liner.
• Welding quality: All welding shall be high quality and use the correct procedures and materials. Poor welding workmanship results in premature cracks and failures under stress.
• Aerodynamics design: Back pressure and high velocity are factors that can lead to structural failure. CFD analysis and proper aerodynamic design are required to minimize the failure factors.
• Drain system: An efficient drainage system should be used to prevent water accumulation, which can lead to corrosion. The drain system must be well maintained, too.

Prevent Safety Hazards and Downtime with Regular Inspections

Steam vent silencers are critical components of industrial setups, and maintaining their structural integrity is essential for plants’ safe and efficient operation. Proper designs, regular inspections, and proactive maintenance are keys to averting failures for long performance. You avoid costly downtime and safety hazards by understanding some common failure points and addressing those through thoughtful design and routine checks.
